Графические ЖКИ дисплеи

ОНИКС-ЭЛЕКТРО предлагает графические LCD модули с матрицами: 122x32, 128x32, 128x64, 160x32, 160x80, 192x32, 240x64, 256x64, 128x128, 160x128, 160x160, 208x65, 240x128, 240x160, 320x240, для LCD панелей возможны опции STN, FSTN & DFSTN в передаточном / полупрозрачном режимах, LED подсветка доступна в жёлто-зелёном цвете, а также в синем, белом, и так далее.

* Кликайте на номер модели, чтобы перейти на  даташит.


⇒Закажите дисплей сейчас
Номер модели      Дисплей             Размер модели        Вид    Размер    Контроллер     Фото     Процесс Подсветка Символ
Формат WxHxT (mm) зона точки IC Размер
SG12232A 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED
SG12232C 122 x 32 85.0 x 40.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED
SG12232D 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED
SG12232M 122 x 32 84.0 x 44.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED
SG12232N 122 x 32 85.0 x 40.0 x 8.8 (12.7) 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED
SG12232P 122 x 32 117.0 x 39.0 x 12.7 84.0 x 27.0 .61 x .61 SBN1661 LCD Graphic 12232 COB None,LED Edge
SG12232Q 122 x 32 66.2 x 33.2 x 8.8 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED Edge
SG12232S 122 x 32 66.2 x 27.2 x 8.8 60.5 x 18.5 .40 x .45 SBN1661 LCD Graphic 12232 COB None,LED Edge
SG12832A 128 x 32(8 x 2) 66.0 x 26.0 x 8.5 (12.0) 51.0 x 14.8 .33 x .34 ST7920 LCD Graphic 12832 COB None,LED 5.88 x 6.04
SG12832C 128 x 32 84.0 x 44.0 x 8.8 (12.7) 65.0 x 17.9 .42 x .42 RW1065 LCD Graphic 12832 COB None,LED
SG12864A 128 x 64 93.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED
SG12864B 128 x 64 93.0 x 70.0 x 8.7 78.0 x 46.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED
SG12864C 128 x 64 78.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED
SG12864D 128 x 64 93.0 x 70.0 x 11.8 70.7 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED
SG12864E 128 x 64(8 x 4) 93.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 ST7920 LCD Graphic 12864 COB None,LED Edge 8.28 x 8.28
SG12864F 128 x 64 87.0 x 70.0 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 RA6963 LCD Graphic 12864 COB None,LED
SG12864G 128 x 64 78.0 x 70.0 x 8.8(12.7) 72.0 x 40.0 .48 x .48 RA6963 LCD Graphic 12864 COB None,LED
SG12864H 128 x 64 75.0 x 52.7 x 7.9 (9.2) 60.0 x 32.5 .40 x .40 SBN6400G LCD Graphic 12864 COB None,LED Edge
SG12864I 128 x 64 78.0 x 70.0 x 10.5 (13.2) 62.0 x 44.0 .40 x .56 SBN6400G LCD Graphic 12864 COB None,LED Edge
SG12864J 128 x 64 78.0 x 70.0 x 10.5 (13.2) 62.0 x 44.0 .40 x .56 RA6963 LCD Graphic 12864 COB None,LED Edge
SG12864M 128 x 64 84.4 x 66 x 8.8 (12.7) 72.0 x 40.0 .48 x .48 SBN6400G LCD Graphic 12864 COB None,LED
SG16032A 160x32(10 x 2) 80.0 x 36.0 x 8.8 (12.7) 65.0 x 16.0 .35 x .35 ST7920 LCD Graphic 16032 COB None,LED 6.12 x 6.12
SG16032B 160 x 32 122.0 x 44.0 x 13.6 99.0 x 24.0 .55 x .56 SBN0080G   COB LED
SG16032C 160x32(10 x 2) 122.0 x 40.0 x 13.6 99.0 x 24.0 .55 x .56 ST7920   COB LED 9.41 x 9.56
SG16032D 160x32(10 x 2) 122.0 x 44.0 x 13.6 99.0 x 24.0 .55 x .56 ST7920 COB LED 9.41 x 9.56
SG16080A 160 x 80 109.0 x 73.0 x 10.2 77.5 x 54.0 .40 x .55 ---------- LCD Graphic 16080 COB None,LED Edge
SG19232B 192 x 32 116.0 x 37.0 x 9.4 (10.8) 88.0 x 19.0 .38 x .47 SBN1661 LCD Graphic 19232 COB None,LED Edge
SG19232C 192 x 32(12 x 2) 116.0 x 37.0 x 9.4 (10.8) 88.0 x 19.0 .38 x .47 ST7920 LCD Graphic 19232 COB None,LED Edge 8.12 x 6.68
SG24064A 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 RA6963 LCD Graphic 24064 SMT None,LED,CCFL
SG24064C 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 RA6963 LCD Graphic 24064 SMT None,LED,CCFL
SG24064G 240 x 64 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .49 x .49 RA6963   SMT None,LED,CCFL
SG25664A 256 x 64(16 x 4) 180.0 x 65.0 x 9.7 (13.8) 134.0 x 40.4 .47 x .47 ST7920 LCD Graphic 25664 SMT None,LED,CCFL 7.97 x 7.97
SG128128A 128 x 128 88.0 x 88.0 x 12.0 (16.3) 69.0 x 69.0 .46 x .46 RA6963 LCD Graphic 128128 SMT None,LED
SG128128B 128 x 128 92.0 x 106 x 12.0 (14.5) 69.0 x 69.0 .46 x .46 RA6963 LCD Graphic 128128 SMT None,LED
SG160128A 160 x 128 129 x 102 x 16.2 (19.2) 101.0 x 82.0 .54 x .54 RA6963 LCD Graphic 160128 SMT None,LED
SG160160B 160 x 160 88.8 x 88.8 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 RA8835 LCD Graphic 160160 SMT None,LED
SG160160C 160 x 160 89.2 x 85.0 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 ---------- LCD Graphic 160160 SMT None,LED
SG160160D 160 x 160 85.0 x 90.0 x 10.0 (14.6) 62.0 x 62.0 .34 x .34 LC7981 LCD Graphic 160160 SMT None,LED
SG240128A 240 x 128 170 x 102 x 14.0 (15.5) 132.0 x 76.0 .47 x .47 RA6963 LCD Graphic 240128 SMT None,LED,CCFL
SG240128B 240 x 128 144 x 104 x 10.3 (15.1) 114.0 x 64.0 .40 x .40 RA6963 LCD Graphic 240128 SMT None,LED,CCFL
SG240128D 240 x 128 144 x 104 x 10.3 (15.1) 114.0 x 64.0 .40 x .40 ---------- LCD Graphic 240128 SMT None,LED,CCFL
SG240128E 240 x 128 118.0 x 60.0 x 11.6 83.0 x 45.0 .29 x .29 ----------   SMT None,EL

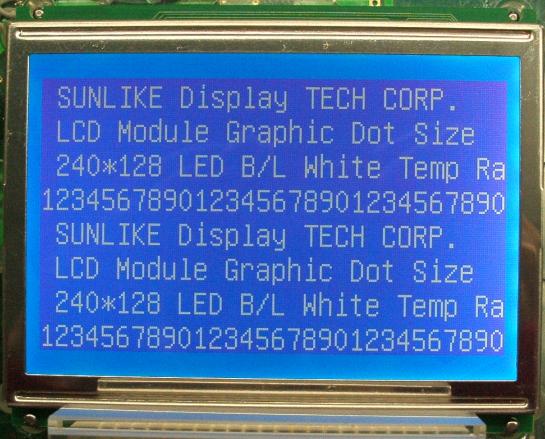

SG240128F 240 x 128 91.8 x 74.0 x 10.0 83.2 x 54.0 .30 x .33 RA8822 LCD Graphic 240128 COB None,LED Edge
SG320240B 320 x 240 160 (167) x 109.0 x 11.0 121.0 x 92.0 .33 x .33 ---------- LCD Graphic 320240 SMT None,LED Edge,CCFL
SG320240C 320 x 240 148 (156) x 120.2 x 20.5 121.0 x 92.0 .345 x .345 RA8835 LCD Graphic 320240 COG +SMT None,LED Edge,CCFL
SG320240D 320 x 240 148 (156) x 120.2 x 20.5 120.14x92.14 .33 x .33 ---------- SMT None,LED Edge,CCFL
SG320240E 320 x 240 109.0 x 70.25 x 7.9 78.8 x 59.6 .23 x .23 ---------- LCD Graphic 320240 TAB+SMT None,LED Edge,EL
SG320240F 320 x 240 160.0 x 109.0 x 12.9 121.0 x 92.0 .345 x .345 ---------- LCD Graphic 320240 COG +SMT None,LED Edge,CCFL
SG320240H 320 x 240 156.0 x 120.2 x 13.5 121.0 x 92.0 .345 x .345 RA8806 LCD Graphic 320240 COG +SMT None,LED Edge,CCFL
SG320240Q 320 x 240 93.8 x 83.3 x 10.6 81.4 x 61.0 .23 x .23 RA8835 TAB LED
SH12864A 128 x 64 80.0 x 54.0 x 9.7 70.7 x 38.8 .48 x .48 ST7565 LCD Graphic 12864 COG COG None,LED Edge
SH12864B 128 x 64 72.0 x 46.0 x 4.8 66.0 x 32.7 .45 x .45 NT7532   COG None,LED Edge
SH12864C 128 x 64 74.8 x 54.5 x 8.0 59.0 x 32.0 .40x .40 ST7565   COG None,LED Edge
SH12864D 128 x 64 40.3 x 35.0 x 4.5 33.8 x 22.2 .225x .285 NT7532 LCD Graphic 12864 COG COG None,LED Edge
SH160160A 160 x 160 69.0 x 69.5 x 6.0 63.4 x 63.3 .335 x .335 ---------- LCD Graphic 160160 TAB EL
SH20865A 208 x 65 67.0 x 30.0 x 2.0 60.425 x 20.385 .265 x .265 IST3017 COG None
SH240160B 240 x 160 80.0 x 65.0 x 6.5 61.6 x 42.5 .23 x .23 RA8835   TAB +SMT EL,LED
SH320240A 320 x 240 160 (167.1) x 109 x 11.0 121.0 x 92.0 .33 x .33 RA8835 LCD Graphic 320240 SMT None,LED Edge,CCFL
SH320240C 320 x 240 148 (156) x 120.2 x 20.5 120.14x92.14 .33 x .33 RA8835 LCD Graphic 320240 SMT None,LED Edge,CCFL
